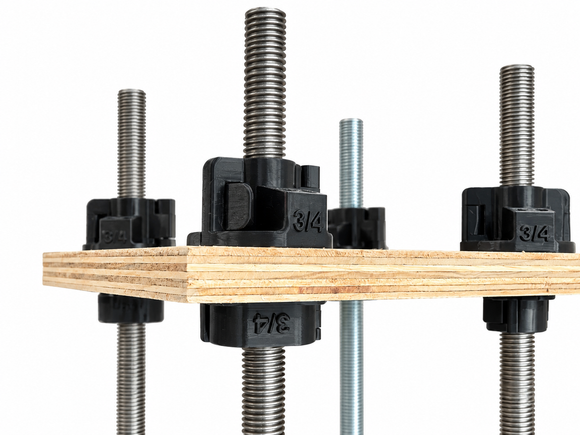

Dula-Clamp - Anchor Bolt Clamp

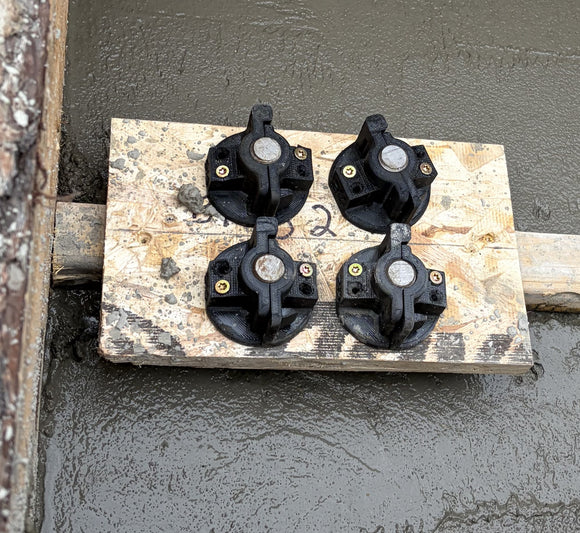

The Dula-Clamp securely holds anchor bolts in place during concrete placement, eliminating the need for bottom nuts when using wood templates set directly at grade. It fastens directly to the template with screws, allowing the template to sit at grade without interference from or the need to adjust bottom hardware.
When templates are supported above grade on lumber during the pour, we recommend using the Dula-Clip as the bottom nut to securely lock the anchor bolt and template in place.
Also usable with steel templates when used in combination with the Dulac-Clip
Key Benefits
- Way faster bolt setup and removal (even greater with damaged threads)
- No bottom nuts required with wood templates that are set at grade
- No issue if concrete ends up on the threads
- No issue if the threads are galvanized poorly
- No issue if rough or damaged threads
- No issue if threads are dirty
- Easy removal every time—no fighting seized nuts
- Reusable
- Adjusts like a standard nut
Features
- Available sizes: ½", ⅝", ¾", ⅞", 1", 1⅛", 1¼", 1½"
- Custom sizes available upon request
- Size clearly marked on each unit
- Compatible with steel templates when used with Dula-Clips
- Bottom recess designed to accommodate the Dula-Cone
- Made from durable PETG
- Sold in packs of 24
